| Features: | High Pressure, High Tempreture, Anticorrosion, Long Serving Life | Production Code: | ASTM B898, ASME SB898 |
|---|---|---|---|
| Surface Treatment: | Auto Polished | OD(mm): | 812.8 |
| Thickness: | 35+5 | Material: | SB265 Gr.1 Titanium/Carbon Steel |
| Standard: | ANSI, DIN, GB, EN, JIS, NB | Certificate: | ISO9001, Mill Test Certificate, Materials Certificate |
| Exported Countries: | USA, Australia, Russia, Bahrain, Venezuela, Greece, Korea, Indonesia | Application: | Heat Exchangers, Condensers, Coolers, HAVC System,etc. |
| Applied Industries: | Power Generation, Industry Refrigeration, Oil&Gas, Chemical&Petrochemical |

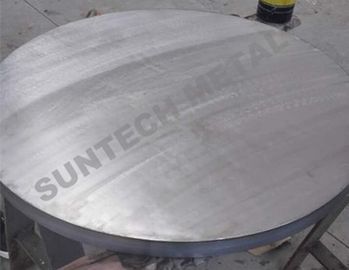

SB265 Gr.1 Titanium / Carbon Steel Clad Tubesheet for Condensers
Detailed Product Description:
SB265 Gr.1 Titanium/Carbon Steel Clad Tubesheet for Condensers
Flying Layer:SB265 Gr.1
Base Layer:SA516 Gr.70N
Size:(5+35)*OD812.8mm
Edge Treatment: Waterjet Cutting
Bonding rate: 100% sound bonding
Packing: Plywood case
Owning World-leading Technology
→Core R&D team dedicated to the R&D of military and nuclear dynamic clad technology for almost 30 years;
→Strategically cooperates with National University of Defence Technology, Central South University, South China Univerty of Technology;
→Internationally cooperates with E. O. Paton Electric Welding Institute, which attended ITER international thermonuclear fusion project;
→no limits of materials shape, thickness and area;
→metallurgical bonding with high strength;
→high performance of machining process;
→improving the materials performance after bonding;
→realizing multilayer materials clad;
→Package: standard export package;
Inside: anticorrosion oil paper, water-proof membrane ；
Outside:polywood box, iron sheet, iron pallet, or according to customers requirements;
→Delivery time: within 30-60days according to different orders.
→Main Export Port: Shanghai, or according to customers requirements.
→Shipping Time: according to different transportation ways and ship routes.
Competitive Advantage:
Abundant experience: more than one decade of abundant experience in non-ferrous metal cladding and production;
Technical consulting service: technical consulting on material, welding, NDE, etc;
Independent inspection service: in-process inspection, final inspection;
Transportation advantage: 296kms away from Shanghai seaport.
